Description

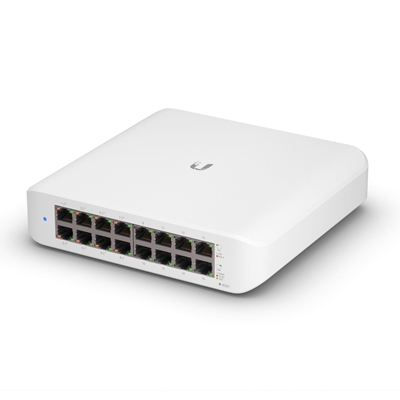

The Switch Lite 16 PoE (USW Lite 16 PoE) is a fully managed switch with (16) GbE RJ45 ports, including (8) 802.3at PoE+ ports, and a 45W total PoE supply for your UniFi access points and other PoE devices. The USW Lite 16 PoE also offers an extensive suite of Layer 2 switching protocols, and can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.

(8) GbE, 802.3at PoE+ RJ45 ports
(8) GbE RJ45 ports
45W total PoE supply
Fanless, silent cooling
Wall-mountable (kit included)

Specifications

Dimensions
191.7 x 185 x 43.7 mm (7.55 x 7.28 x 1.72″)

Weight
1.2 kg (2.65 lb)

Total Non-Blocking Line Rate
16 Gbps

Max. Power Consumption
15W

Power Method
Universal AC Input: 100-240VAC

Power Supply
Internal 60W AC/DC Power Supply

Networking Interfaces
(16) 10/100/1000 Mbps Ethernet RJ45

PoE Interfaces
(8) PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)

Max PoE+ Wattage per Port by PSE
30W

Modes
SMB Layer 2 PoE Gigabit Ethernet Switch
